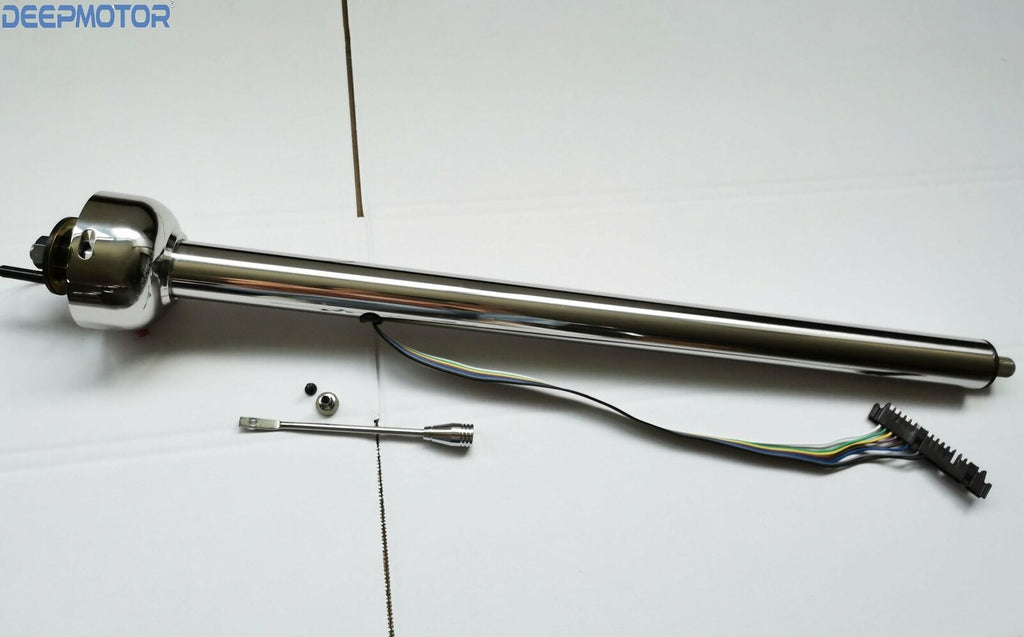

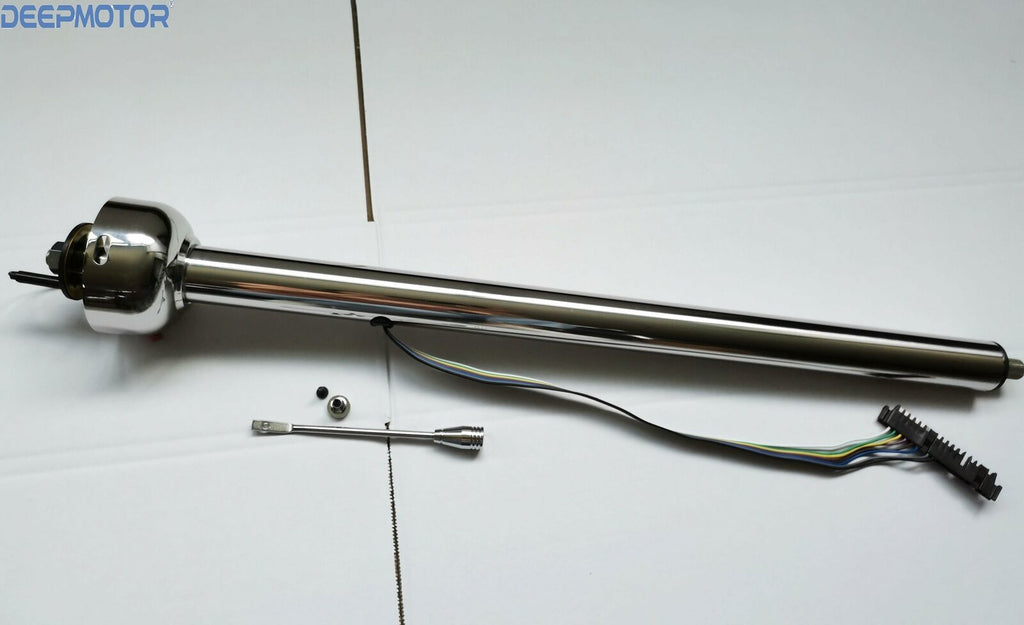

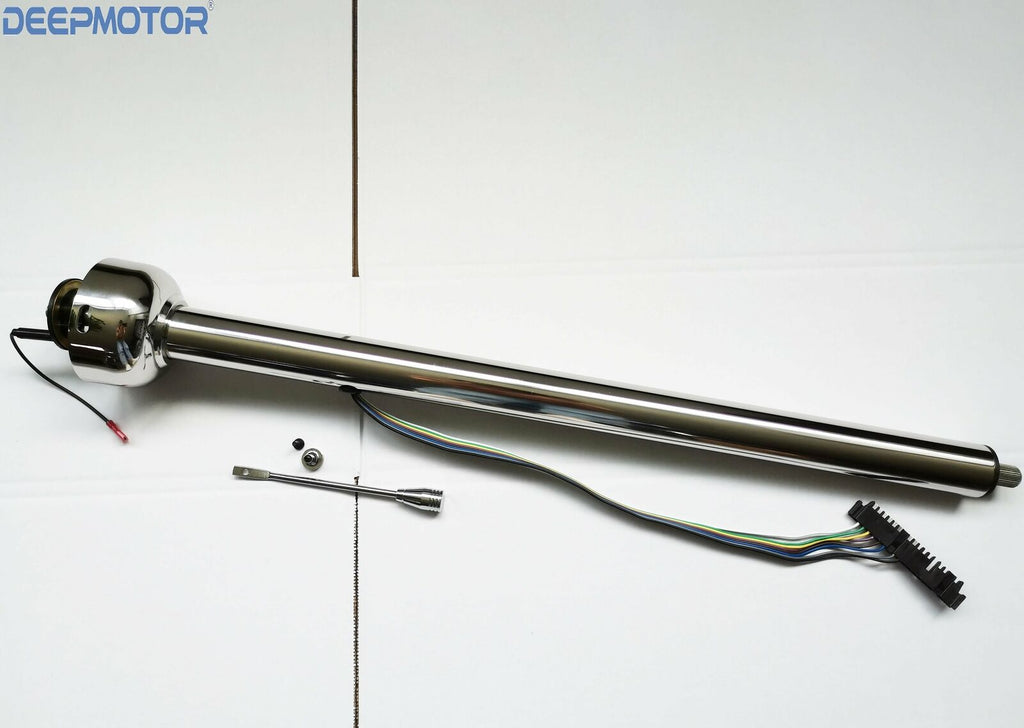

Our original Hot Rod Steering Column has been a huge success, but many rodders said they wanted one with a turn signal.

The Nostalgia Columns offer a similar vintage look but have modern GM-style turn signal, hazard light and horn functions built into the attractive bell-shaped upper housings.

Perfect for a wide variety of 1920's through 1950's era rods, as well as Cobras and other kit cars.

The columns measure 30" long and have 3/4"-36 spline lower shafts. They're available with paintable stainless steel housings.

  • 30" long
  • Beautiful Art-Deco styling
  • Paintable Stainless steel
  • Turn signal, hazard light and horn functions



Application

  • Overall length from end of lower splined shaft to upper end of housing around turn signal assembly is 30"
  • This shaft extends past housing approximately 1-5/8"
  • End of shaft for steering wheel or adapter is 11/16" x 36 spline
  • Main housing is 1-3/4" O.D.

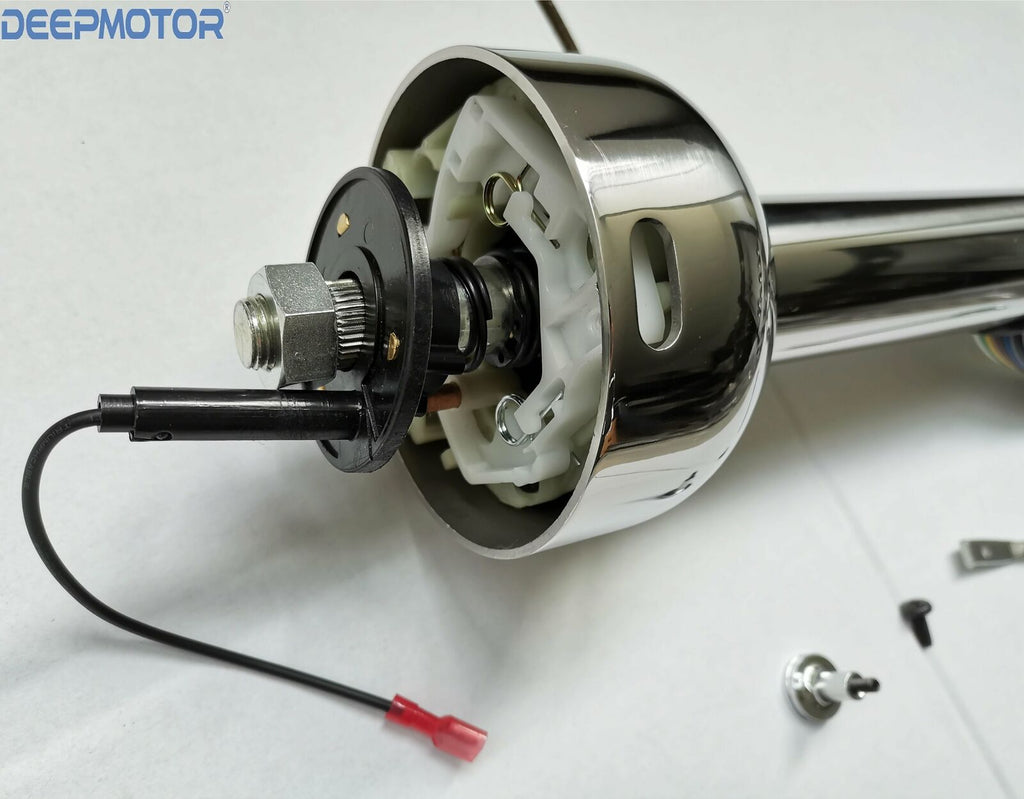

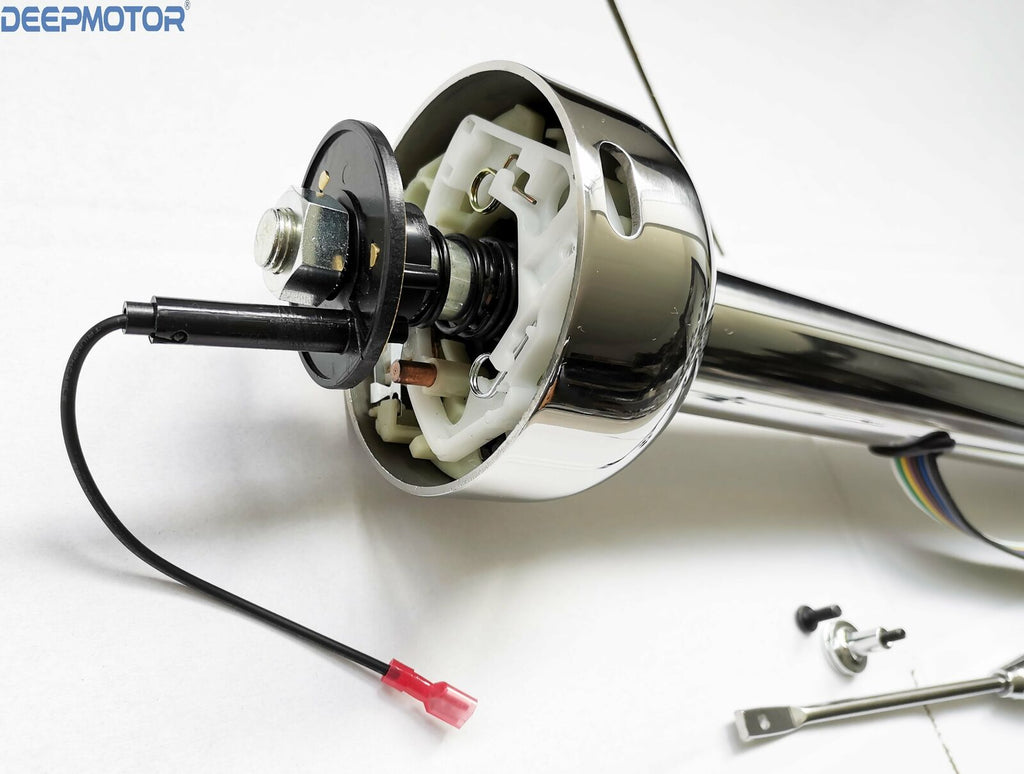

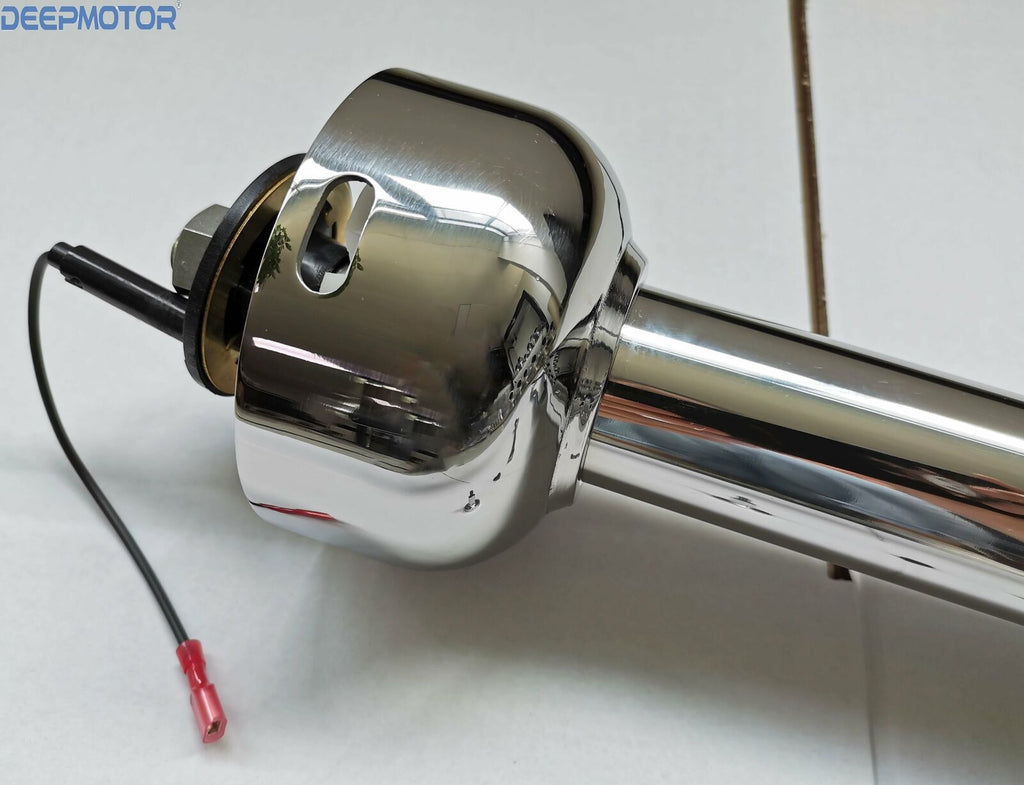

  • Housing at top for turn signal is 4" in diameter and 2-5/16" tall or deep
  • Wire loom exits main column is 5-1/8" below the turn signal housing
  • Wire loom is approximately 23" long and has the GM style flat plug installed
  • Wire loom has 8 wires for horn, turn signal and flashers

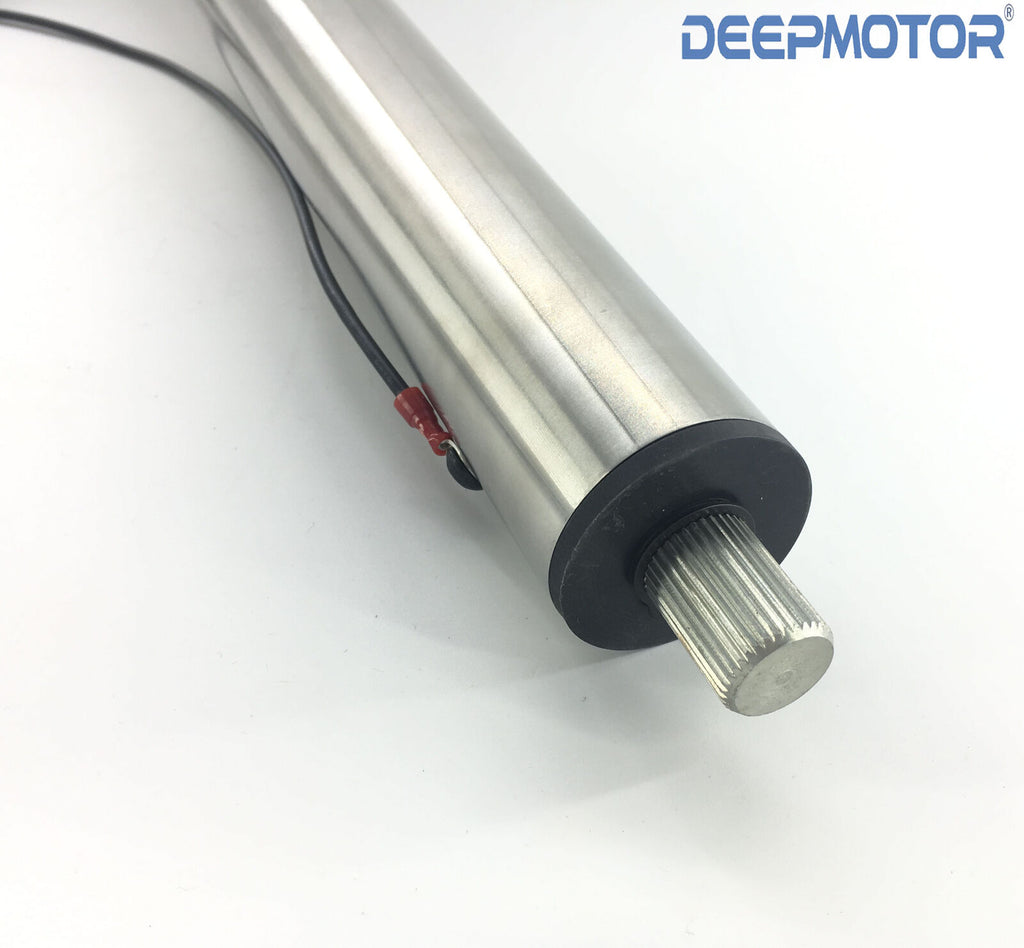

  • Lower end of shaft is 3/4" x 36 spline
  • M14x1.5 nut that uses a 22mm wrench to fasten the steering wheel

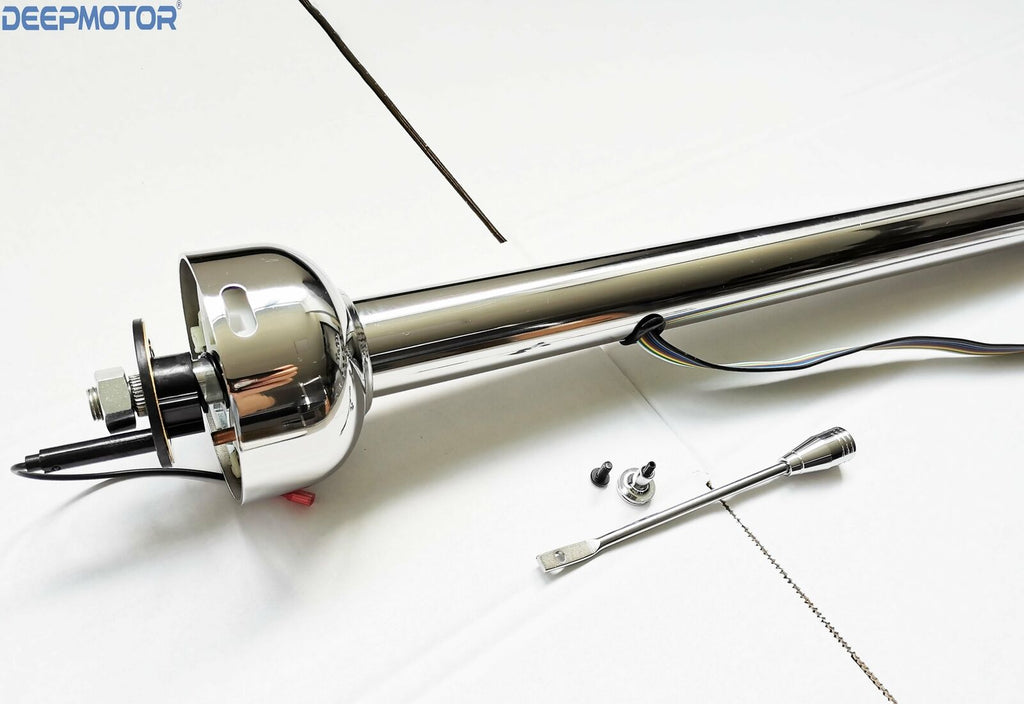

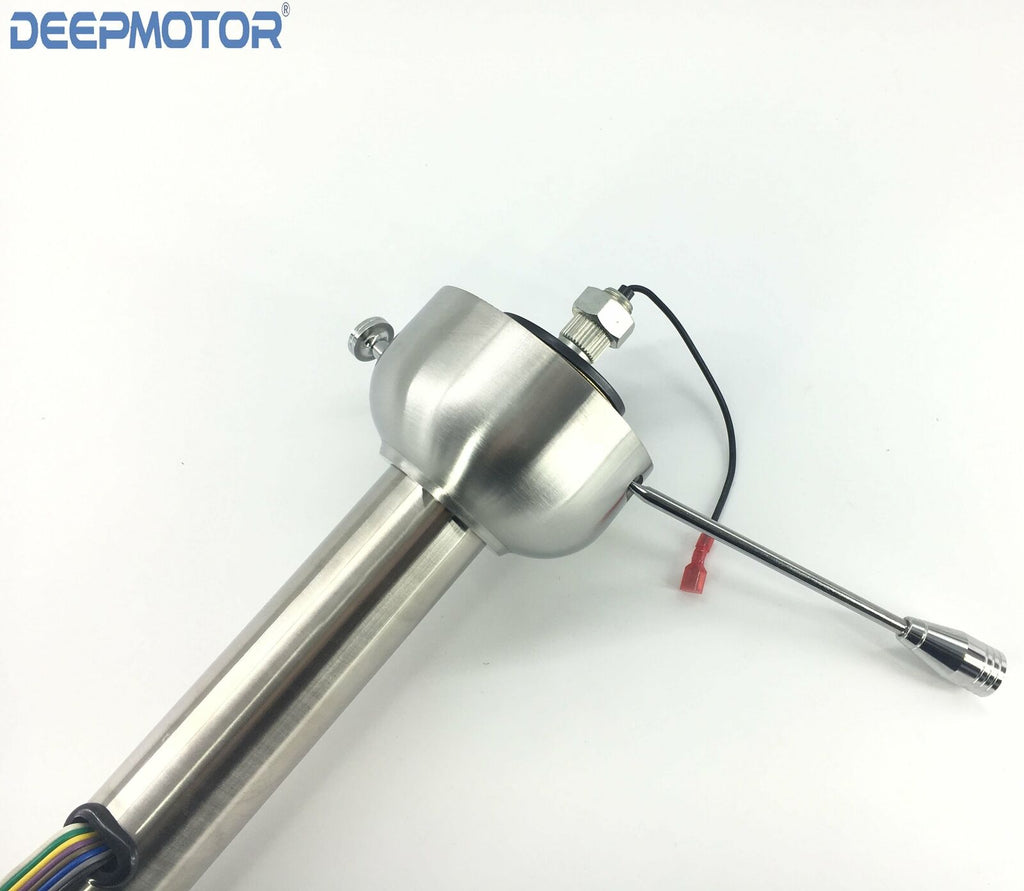

Comes with stainless turn signal lever and flasher button, horn wire pigtail and spring.



Notes

This is a 69-94 style GM turn signal switch and should use the same color coding as factory. The color chart is as follows: BLACK HORN GROUND, LT.BLUE LEFT FRONT TURN ,BLUE RIGHT FRONT TURN ,BROWN HAZARD POWER, PURPLE TURN SIGNAL POWER, YELLOW LEFT REAR TURN, GREEN RIGHT REAR TURN ,WHITE BRAKE LIGHT INPUT

Item Specifics
Brand : Deepmotor
Column Type : Straight
Shifter Location : Floor
Key Location : Dash
Overall Length : 30"
Finish : Natural
Output Shaft Type : 3/4" 36-spline
Spline OD : 0.75"
Spline Count : 36
Tube O.D : 1.75"
Material Type : Stainless Steel
Collapsible : No
MPN : DM-8540
