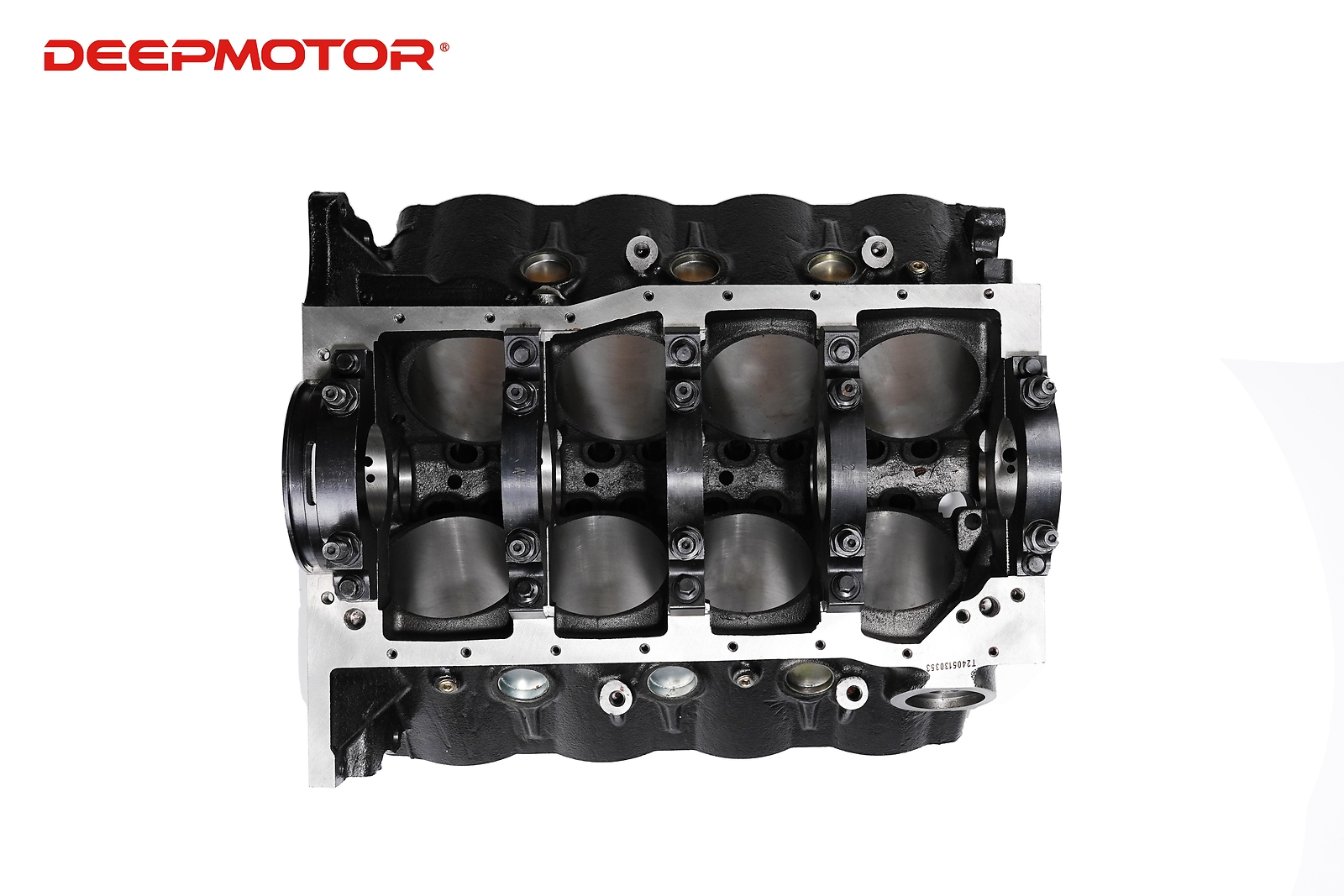

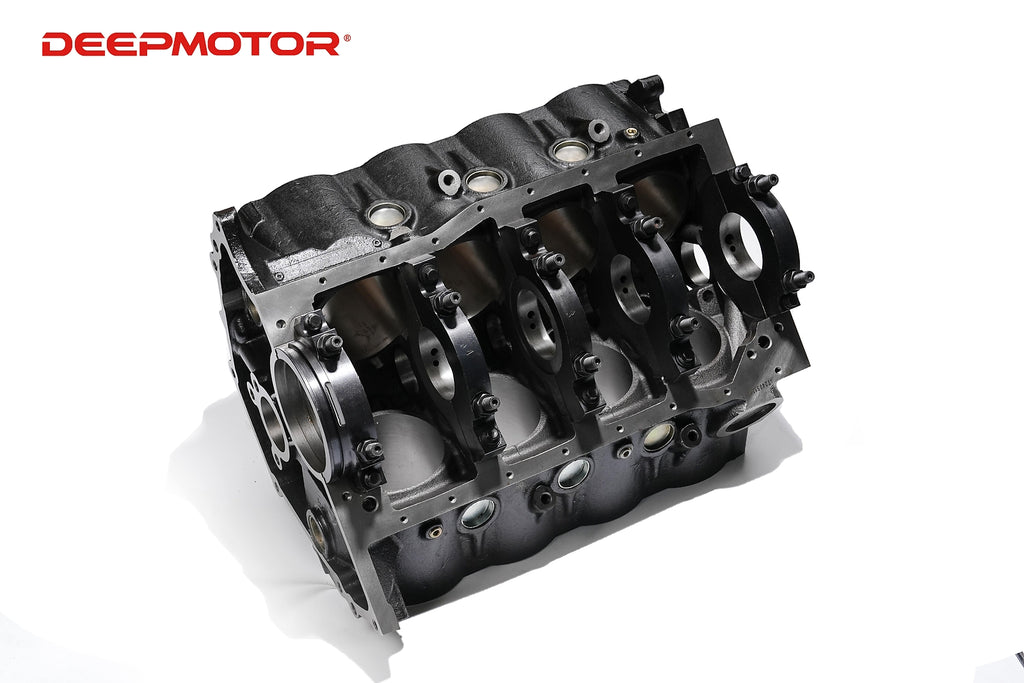

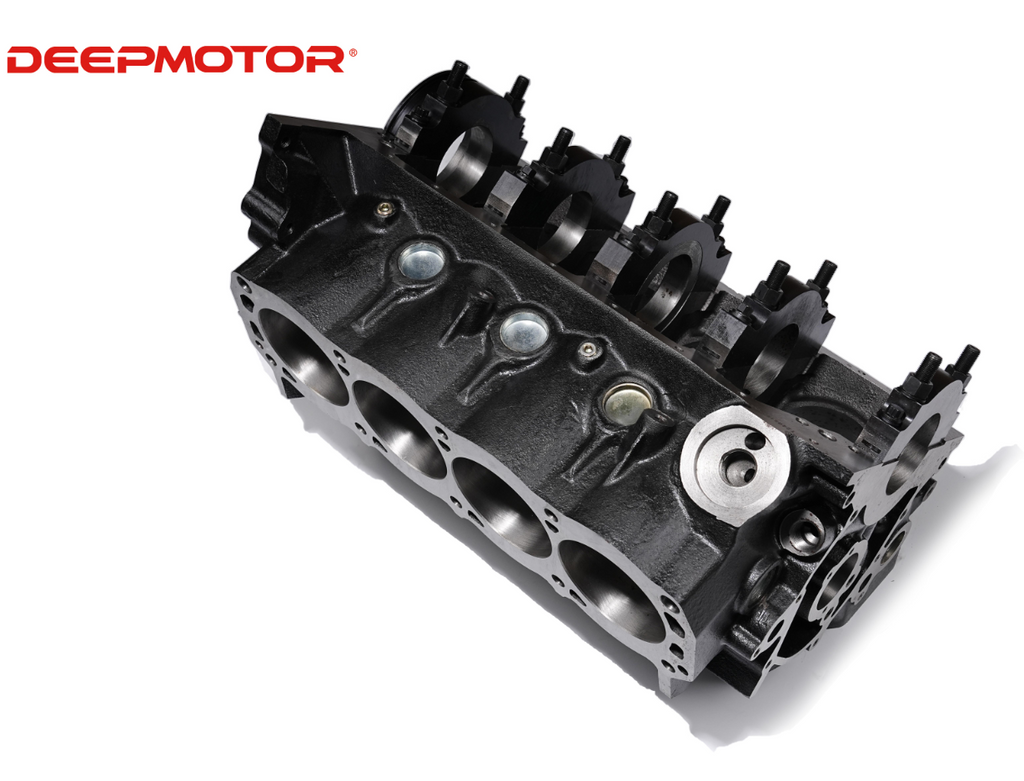

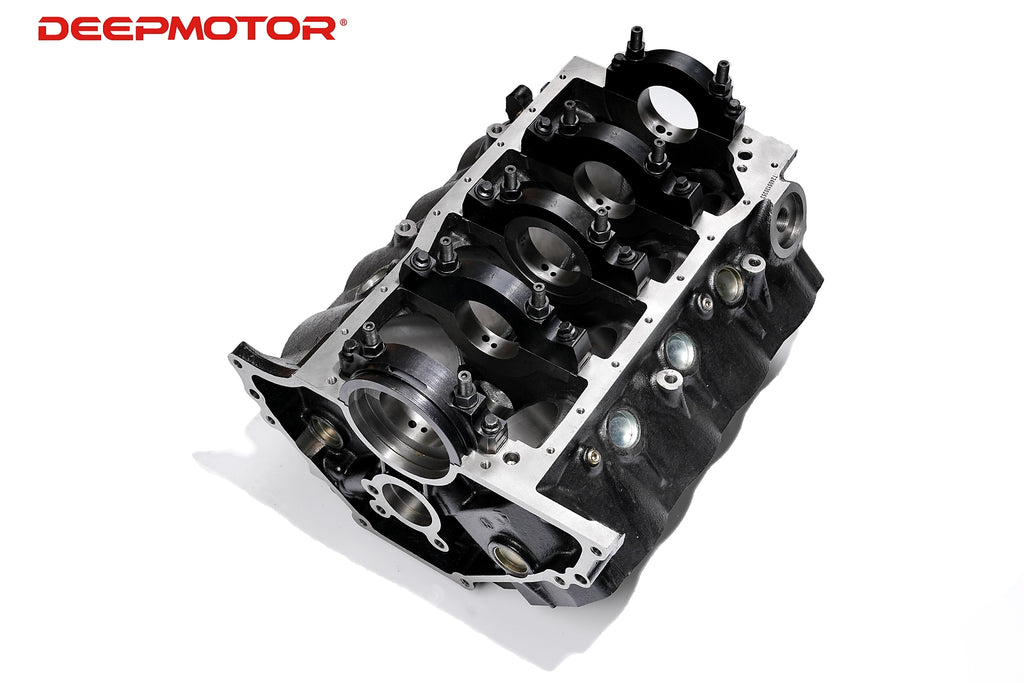

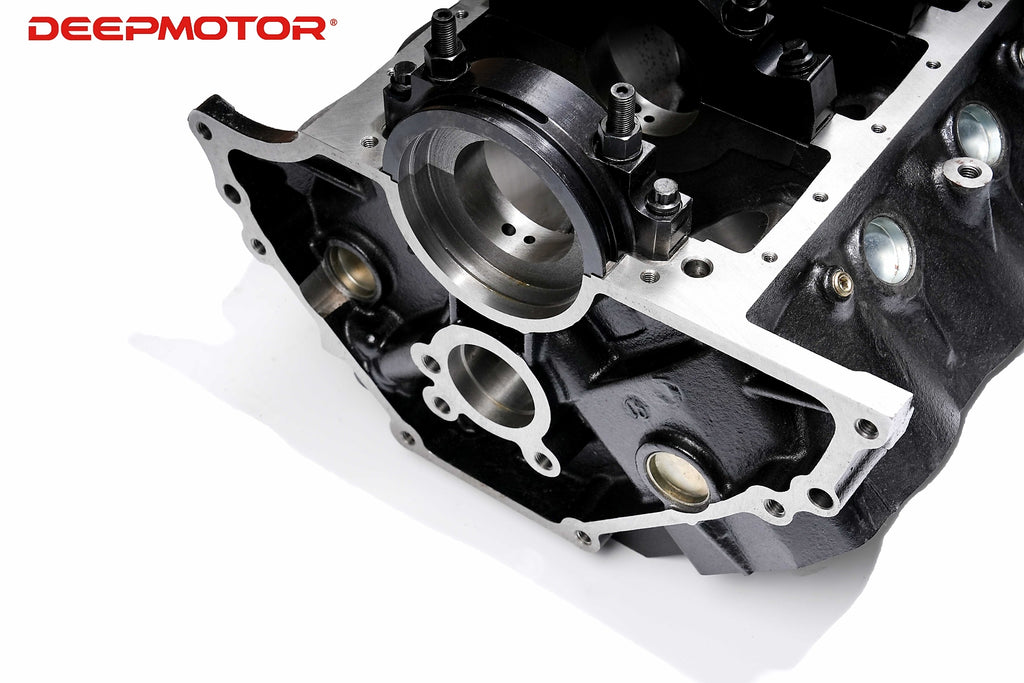

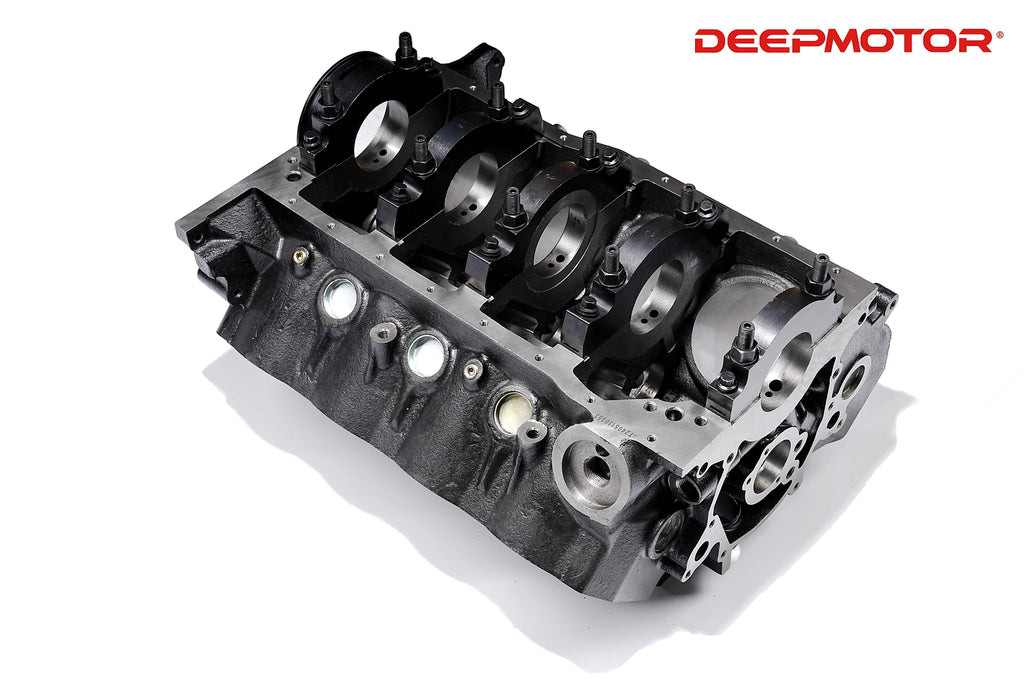

Billet Iron Engine Block for ford 351W Windsor B-4.125 M-351C DH-9.500 4-Bolt
DeepMotor
Your best online partner
|
|
|
|
|
|
|
|
Part Type: Engines, Bare Blocks
Cylinder Bore Diameter: 4.125 in.
Bore & Stroke: 4.185 in. x 4.125 in. Max Recommended
Cam Journal OD: Standard SBF - Can be bored to 55mm
Cam Plug: 2.375 in. Dia. Cup Plug
Cylinder Wall Thickness: 0.250 in. min @ 4.185 in. Bore
Deck Height: 9.500 in.
Deck Thickness: 0.675 in. Min
Fuel Pump : Standard Mechanical Provision
Fuel Pump Pushrod: Standard Length
Freeze Plugs: Standard 1.500" Press In Cup Plugs
Lifter Bores: Standard SBF .8757-.8765" Honed to Size
Main Bearing Size: 2.749 in. (Standard 351c)
Main Bearing Bore: Standard 351c
Main Cap Bolts: #1 1/2" in. (2) 3/8 in. (2)
#2, 3, 4 7/16 (2) Splayed (2)
#5 1/2"in. (2) 3/8 in. (2)
Main Cap Press: 0.003-0.004 in.
Main Caps: All 5 Billet Steel. 3 Center Caps Splayed
Main Cap Register: Deep Stepped Register (No Need for Dowels)
Oil System: Wet Sump or SVO dry sump. Priority main oiling with external pump.
Oil Pump Shaft: Standard SBF
Oil Filter: Standard SBF
Oil Pan: Modified STD 351W Oil Pan
Rear Main Seal: Standard 1pc.
Serial No. Location: Right Front & Main Caps
Starter: Standard
Stud Holes, Head: 1/2" std SVO with blind holes
Timing Chain/Gears: Uses stock 351w components
Timing Cover: Uses stock 351w cover
Torque Specs: 1 - 5 1/2" in. Bolts 105ft. lbs.
2 -4 7/16"in. Bolts 65ft. lbs.
1 & 5 3/8 in. Bolts - 35 ft. lbs.
Weight: 208 Lbs @ 4.125" in. Bore
| Item Specifics | |
|---|---|
| Brand | Deepmotor |
| Type | Engine Block |
| Manufacturer Part Number | DM-3273-1 |
